- IE must be used for viewing live video
- Log into the camera ( Default login admin/AVCoster)

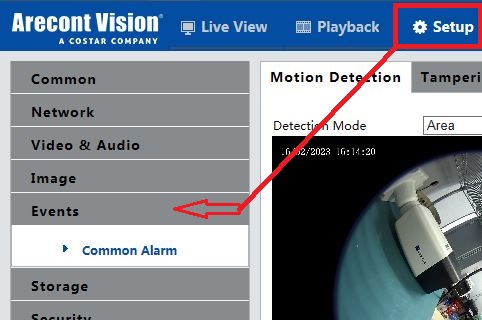

- Click on Setup>Event menu

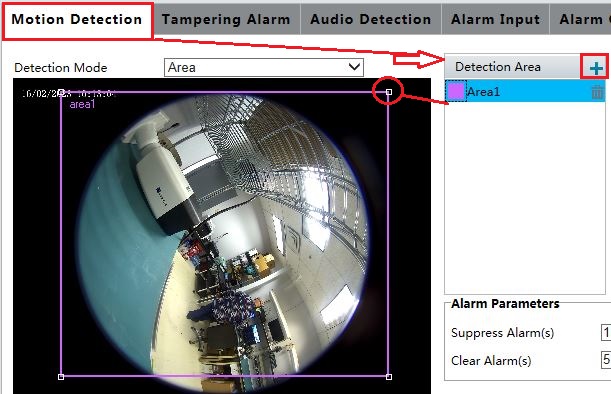

- Click "Motion Tab" then Add "Area1"
Note: you can change the size of Area 1 by Left-clicking and dragging the corners.
- Once the Area1 size is done, Put Check in the "Enable Plan" and "Save"
- Take a look at the Area1 Window graph, you see a spike when movement is detected.
Note: The Object Size Slider can be adjusted for smaller objects if needed.
